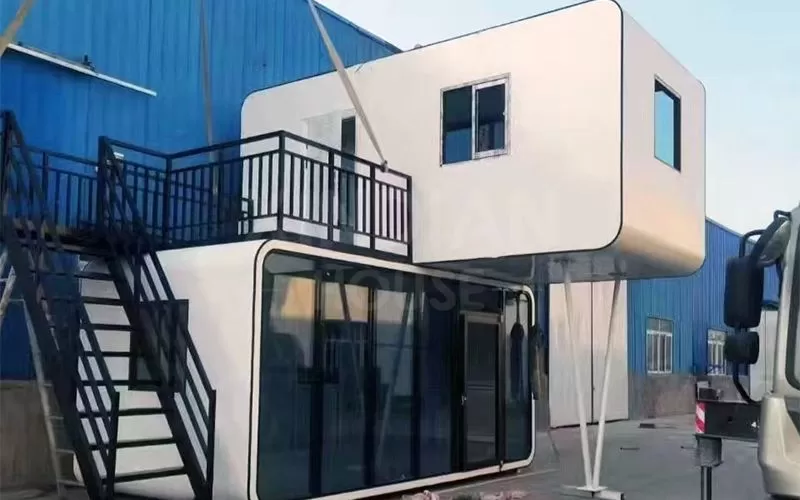

The whole galvanized steel frame, the shell is made of aviation aluminum plate, a large double-layer space, can be used as office, dining, accommodation and other facilities.
Products Description

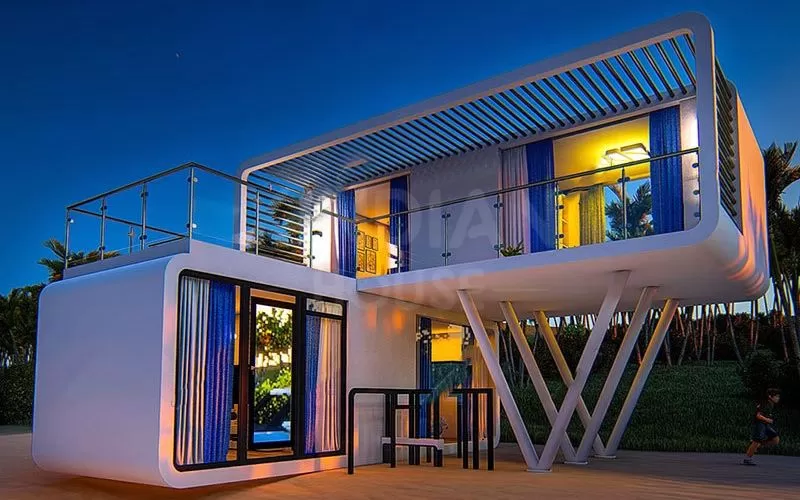

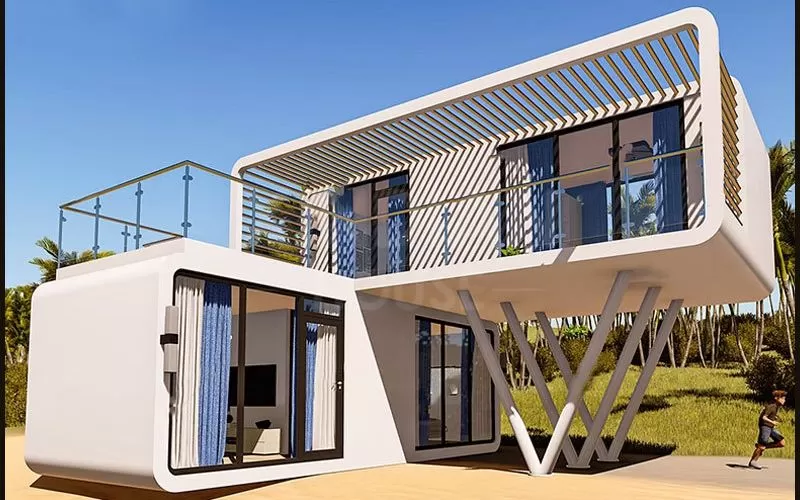

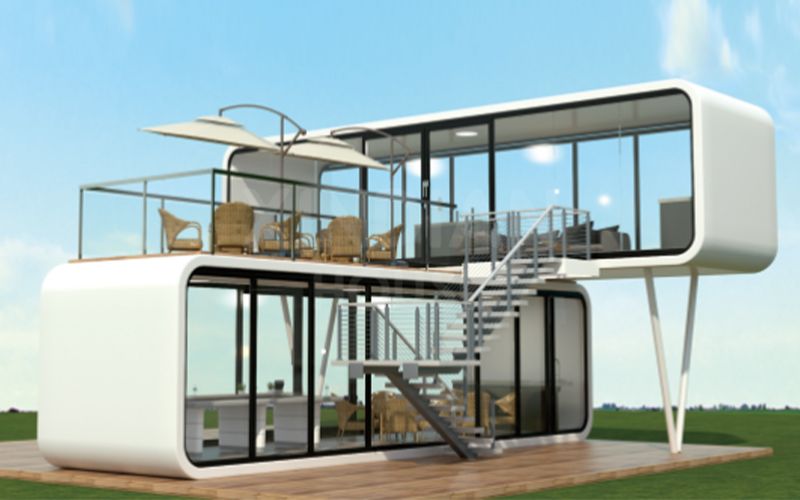

Office 02: The whole galvanized steel frame, the shell is made of aviation aluminum plate, a large double-layer space, can be used as office, dining, accommodation and other facilities.

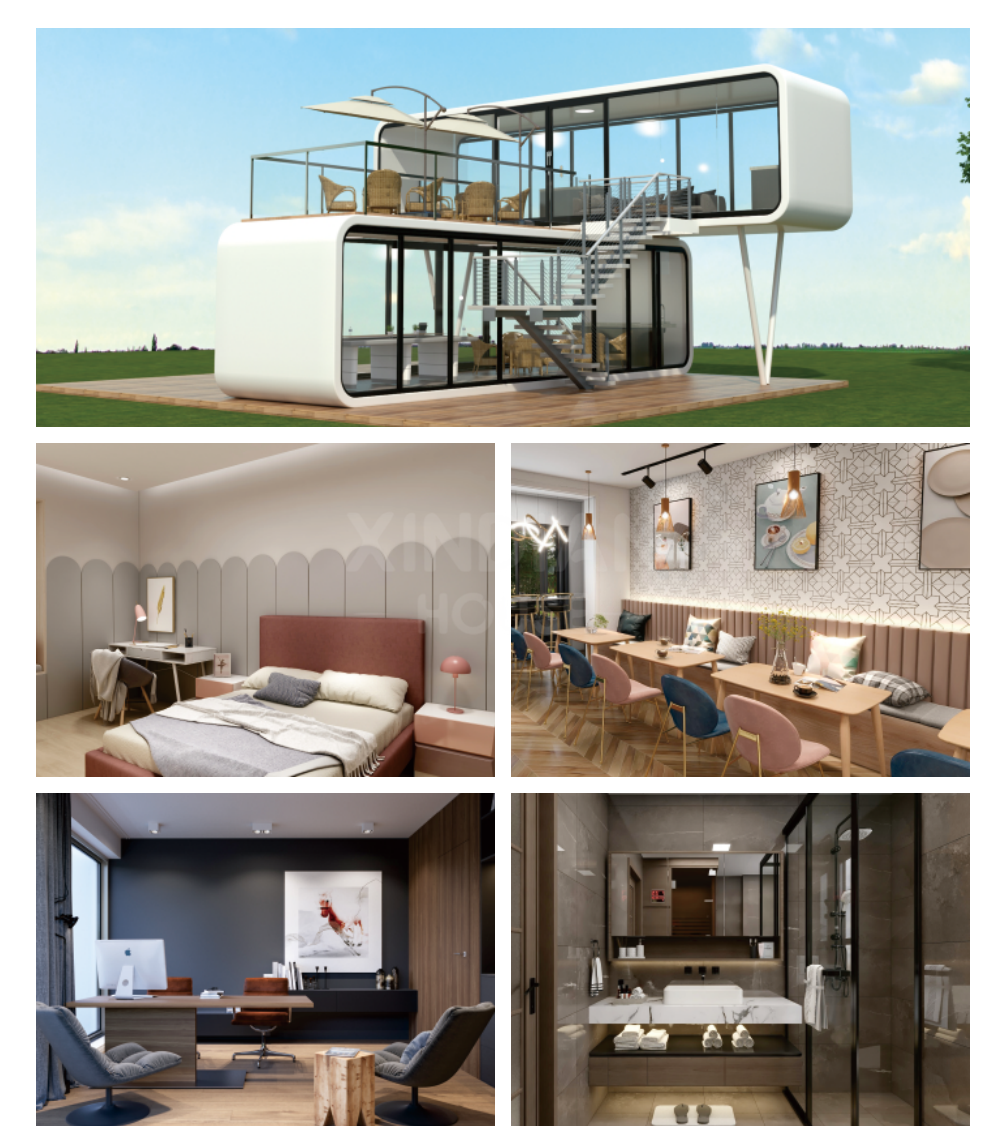

The interior decoration can be tailored to different styles according to the customer's use scenario, and the interior can be customized with smart furniture and smart butler options.

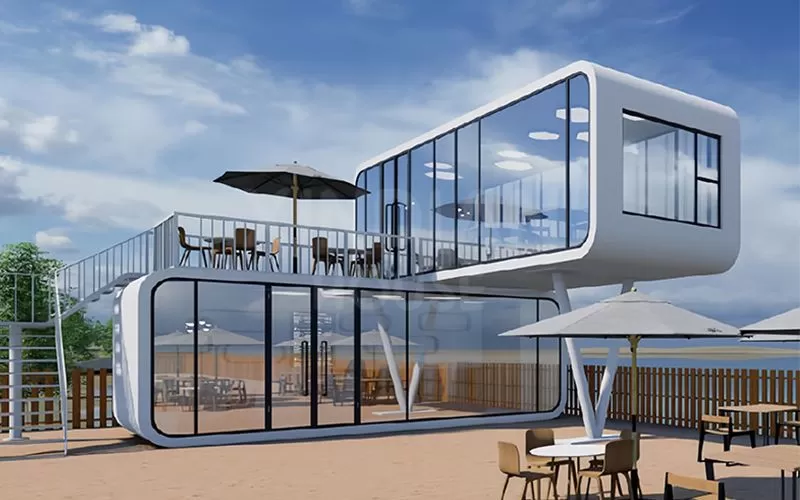

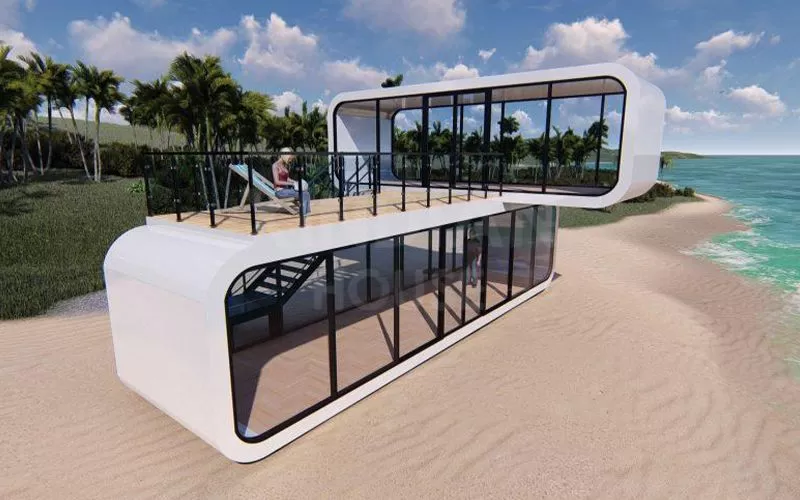

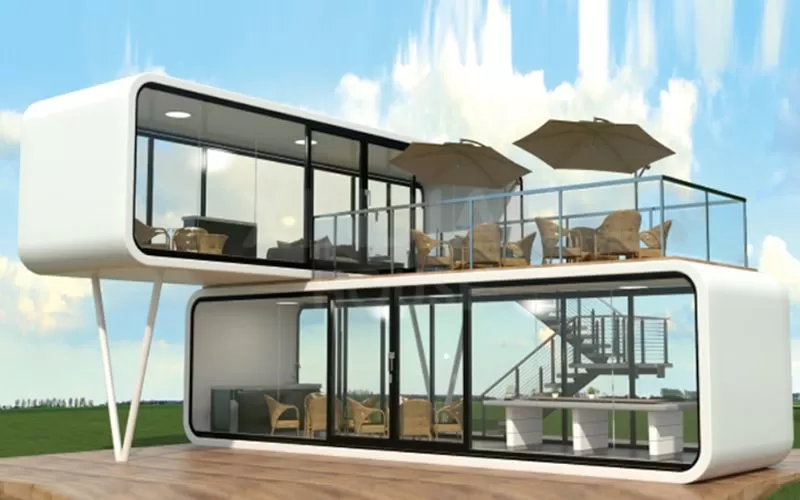

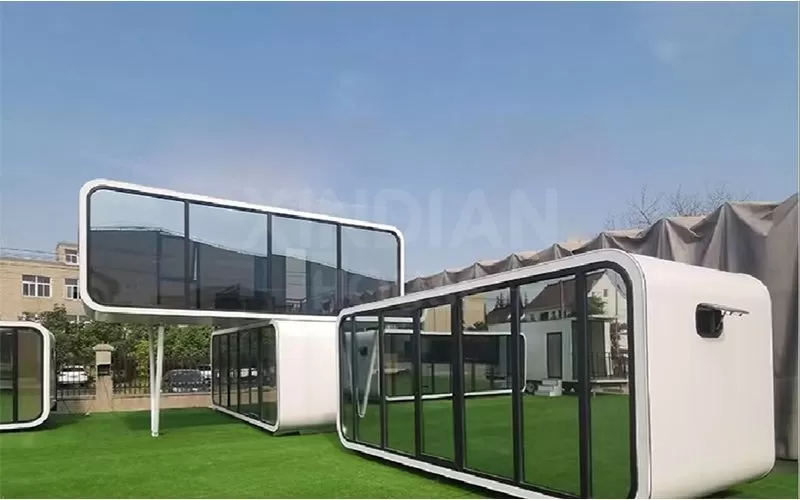

Apple pod as a new type of assembled monolithic building, the overall modern pure white simple advanced style, the internal space can be freely formulated, can be placed in a single unit, can also be combined to build concave modeling, a wide range of uses, can be used as a bed and breakfast, office, commercial, scenic area supporting, a strong sense of visual impact.
Product Advantage:
1、Transport:Our Apple cabin container homes and space capsule house are designed to be easily transported and assembled, making them ideal for remote and hard-to-reach areas. Our prefabricated homes are constructed using the latest technology and materials, ensuring strength, durability, and energy efficiency. Our light steel structure buildings offer a flexible and versatile solution for a range of applications, from commercial and industrial buildings to residential housing.
2、Quality & Stress resistance:Strong and durable, all made of steel, with strong earthquake resistance, deformation resistance;
3、Sealing:Good sealing performance, strict manufacturing process makes this kind of mobile house has very good water tightness
4、Product application scope:The mobile home is based on a standard steel chassis, which can be derived from a number of combination Spaces. Such as conference room, dormitory, kitchen, toilet and so on. The standard width is 2. 4 meters, height 2. 2 meters, 4 to 12 meters in length.
5、Merits:Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 20 years.
Product Parameters:
Apple Cabin container house | |||
Frame structure | Bottom frame | 100mm*150mm*3.0mm galvanized rectangular tube | |
Top frame | 160mm*80mm*3.75mm galvanized rectangular tube | ||
Frame beam | 50mm*100mm*1.5mm galvanized rectangular pipe | ||
Accessories | Welding wire Paint Rustproof paint | ||
Exterior Wall Panels | White Aluminum Composite Panel Cover, Sandwich | ||
Interior wall systems | Honeycomb Aluminum Panel/Carbon Crystal Panel for Interior Walls | ||
Interior Wall Europine Board | |||
Ground system | Ground stone multi-layer solid wood flooring | ||
Ground PVC skirting | |||
Cement fiber board | |||
Roofing systems | Fire-roasted SBS waterproofing membrane | ||
White galvanized sheet for roofing | |||
Thermal insulation systems | Polyurethane spraying + extruded panels | ||
Ceiling systems | Suspended ceiling timber cube | ||
Ceiling honeycomb aluminum plate | |||
Ceiling an individual light strip | |||
Door and window systems | Broken Bridge Aluminum Flush Door (Iron Green Gray) (or White); Glass | ||
Internal Functions | Hardware bathroom, only mirror front light, intelligent voice system, intelligent toilet, central air conditioning, electric curtain track. |
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
