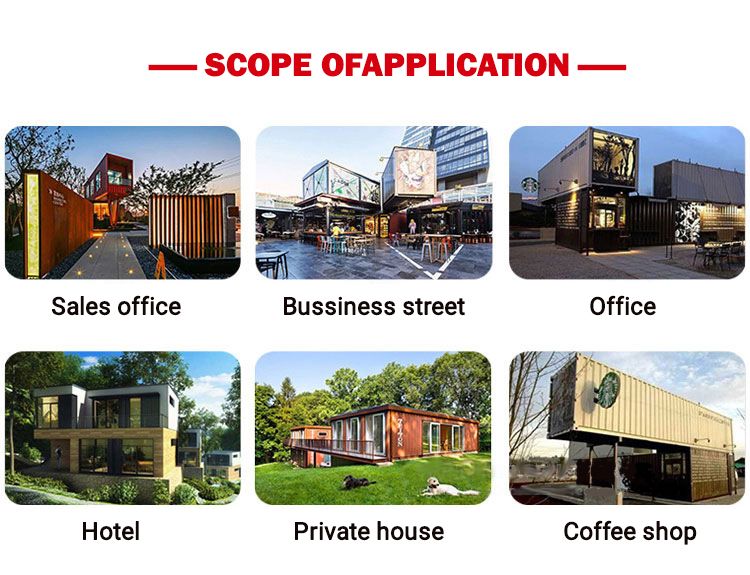

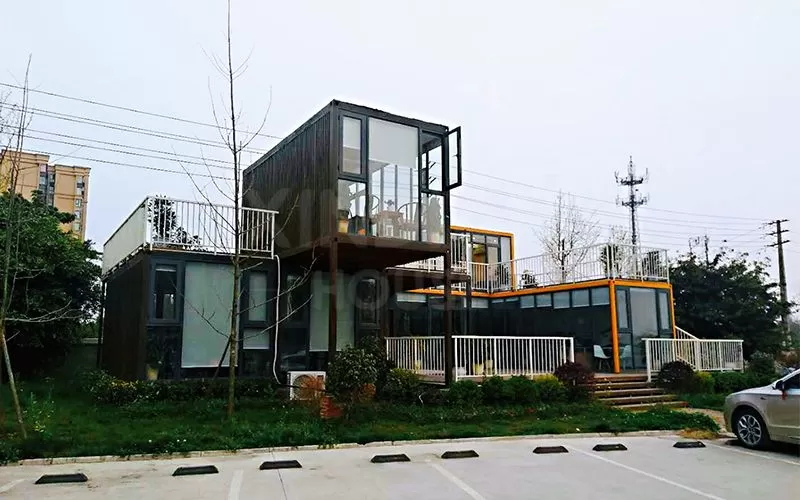

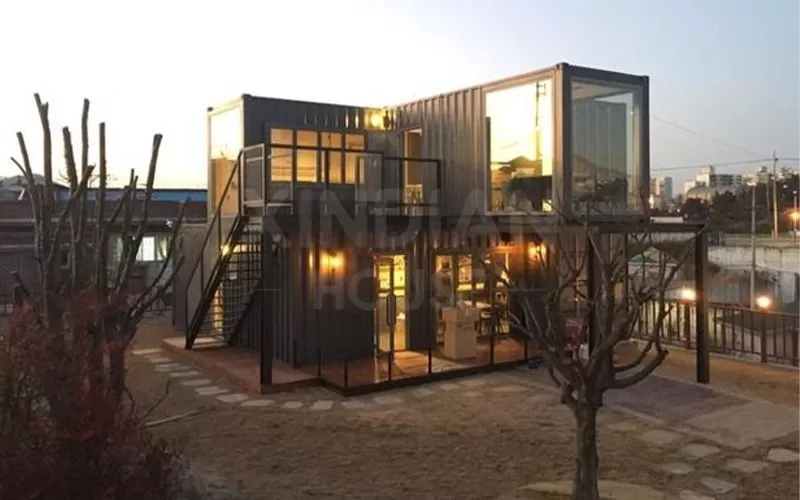

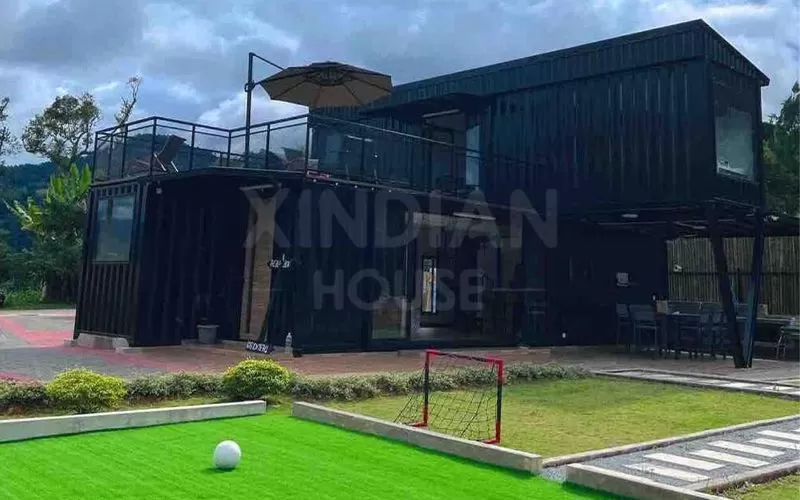

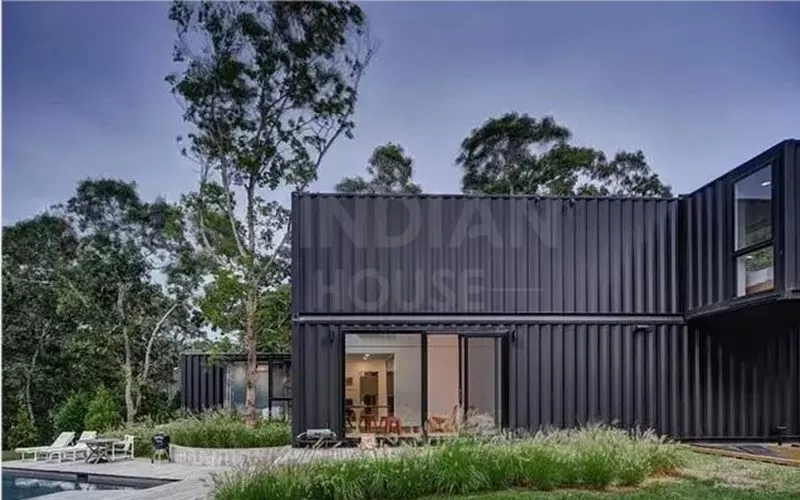

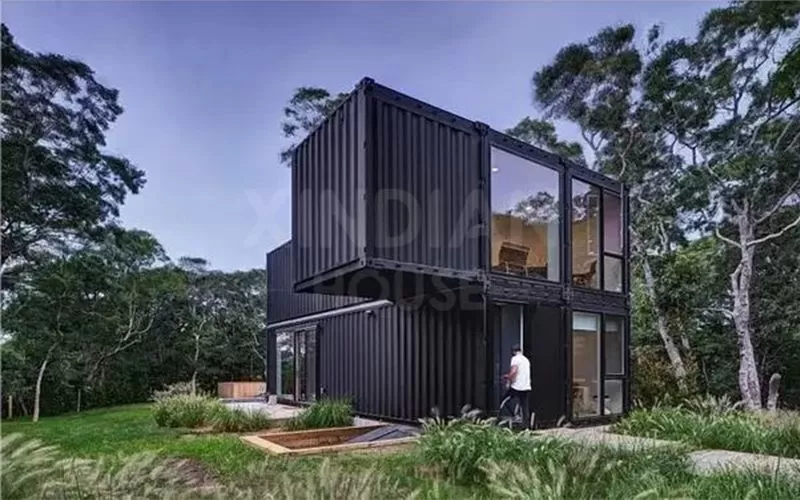

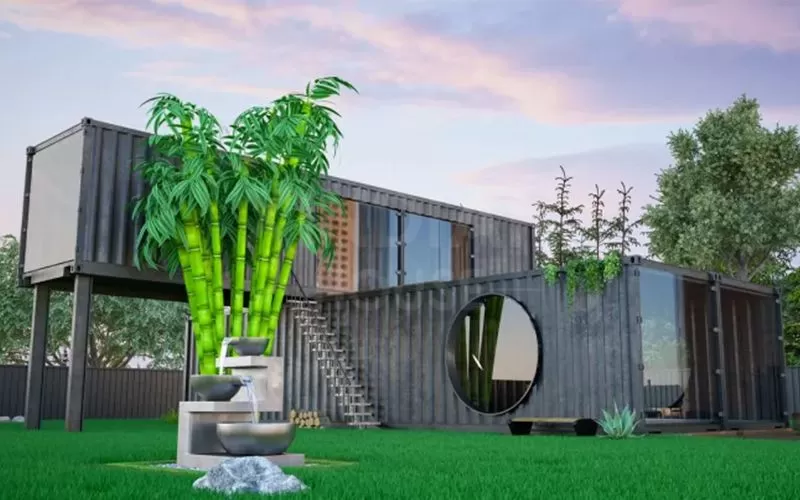

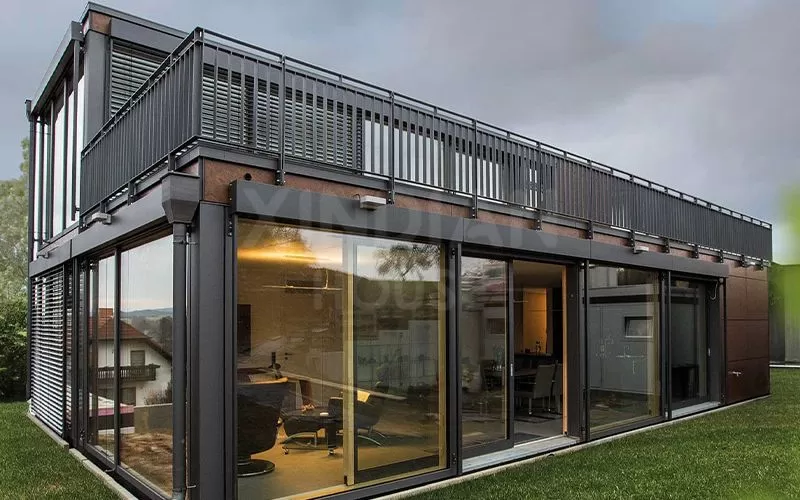

This container villa can be used as a huddle, two-story, three-story, terrace and overhanging house, and the color style can be customized.
Products Description
The assembled container villa is a new form of housing that uses shipping containers to transform them into stylish, comfortable and environmentally friendly homes through careful design and construction. This type of residence not only has a unique appearance and structure, but can also be customized to meet the needs of different customers.
Overall, the assembled container villa is a new form of residence with unique charm and advantages. It can not only satisfy people's pursuit of a better life, but also help protect the environment and sustainable development.
Advantages of assembled container villa:
1、 environmental protection: the use of reusable containers as the main material, so it effectively reduces the generation
of construction waste, but also reduces the need for new raw materials.
2、shorter construction cycle: it can be completed quickly,thus reducing energy consumption and environmental pollution.
3、 flexible and versatile design: it can be customized according to the needs of customers, so as to meet different
use scenarios and needs.
4、Relatively low construction cost: it can reduce the customer's purchase cost.
5、Modularized design: it can be mass-produced and transported to reach the destination conveniently and quickly.
Product Parameters:

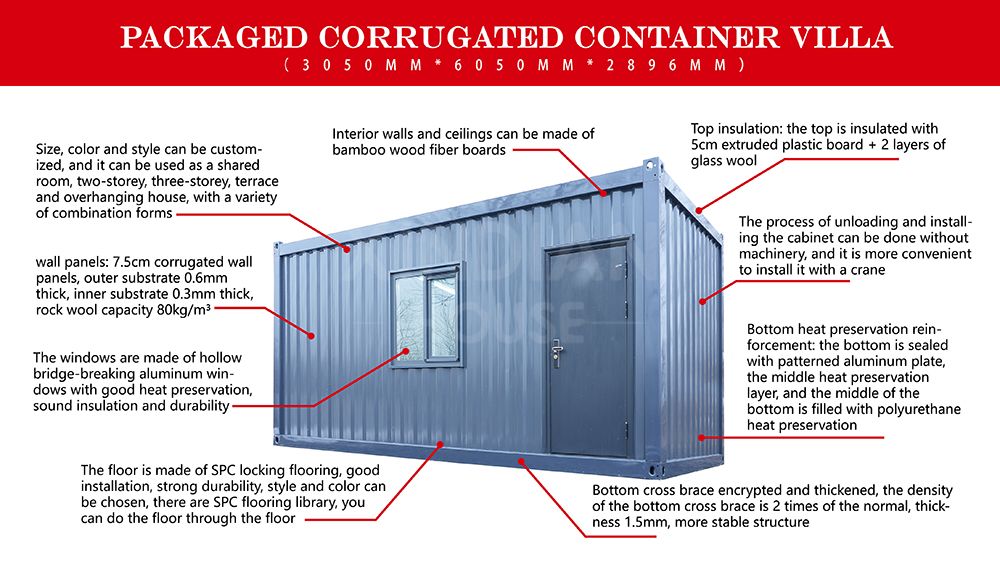

Technical standard for assembled corrugated container villa | ||
SIZE | length | 6050mm or customized |
Width | 3050mm or customized Within 4000mm | |
Height | 2896mm or customized | |
Clear height indoor | 2520mm, it is changable | |
Framework component | Column 2.5mm Galvanized steel strip Q235B | |
Beam 2.5mm Galvanized steel strip Q235B | ||
corner pieces | ||
high strength hexagon socket head cap screws | ||
Bottoms | Bottom Purlin Insulation Polyurethane Filling | |
Alloy Aluminum Patterned Plate | ||
Extruded Plastic Sheet Grade B1 | ||
1.8 Fiber Cement Board | ||
Floor-specific Moisture-proof bubble film rolls | ||
Waterproof flooring spc stone plastic locking floor | ||
Topmost part | top square tube Galvanized rectangular pipe Q235B | |
Top square pipe insulation Polyurethane Filling | ||
0.3mm color steel 831 ceiling | ||
Extruded Plastic Sheet Grade B1 | ||
Two layers of glass wool insulation | ||
Moisture-proof plastic film | ||
double-sided adhesive | ||
roof tile | ||
Walls | Column corner trim (with fasteners) | |
50 drop pipe PVC | ||
Double-sided 04 steel door | ||
Broken bridge two aluminum casement window | ||
corrugated wallboard Exterior wall color customization | ||
Power distribution | Distribution box: 1 2P: 1 Leakage alarm: 1 Switch: 1 Light bar: 2 3-hole: 1 5-hole: 2 Wire: 4 flat 1 meter 2.5 flat 30 meters 1.5 flat 25 meters |
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
